PROJECT 10 / 11 · ME161

Carbon Fiber Clipboard

A pre-preg carbon fiber clipboard built in ME161, autoclave cured for a crisp cosmetic finish.

ClassME161
MaterialPre-preg carbon fiber
ProcessAutoclave cure
FinishCosmetic twill
Overview

An ME161 fabrication exercise: a pre-preg carbon fiber clipboard, vacuum-bagged and autoclave cured for full consolidation and a clean cosmetic twill surface.

Highlights
Gallery / 04 frames
Carbon fiber clipboard
Carbon fiber clipboard

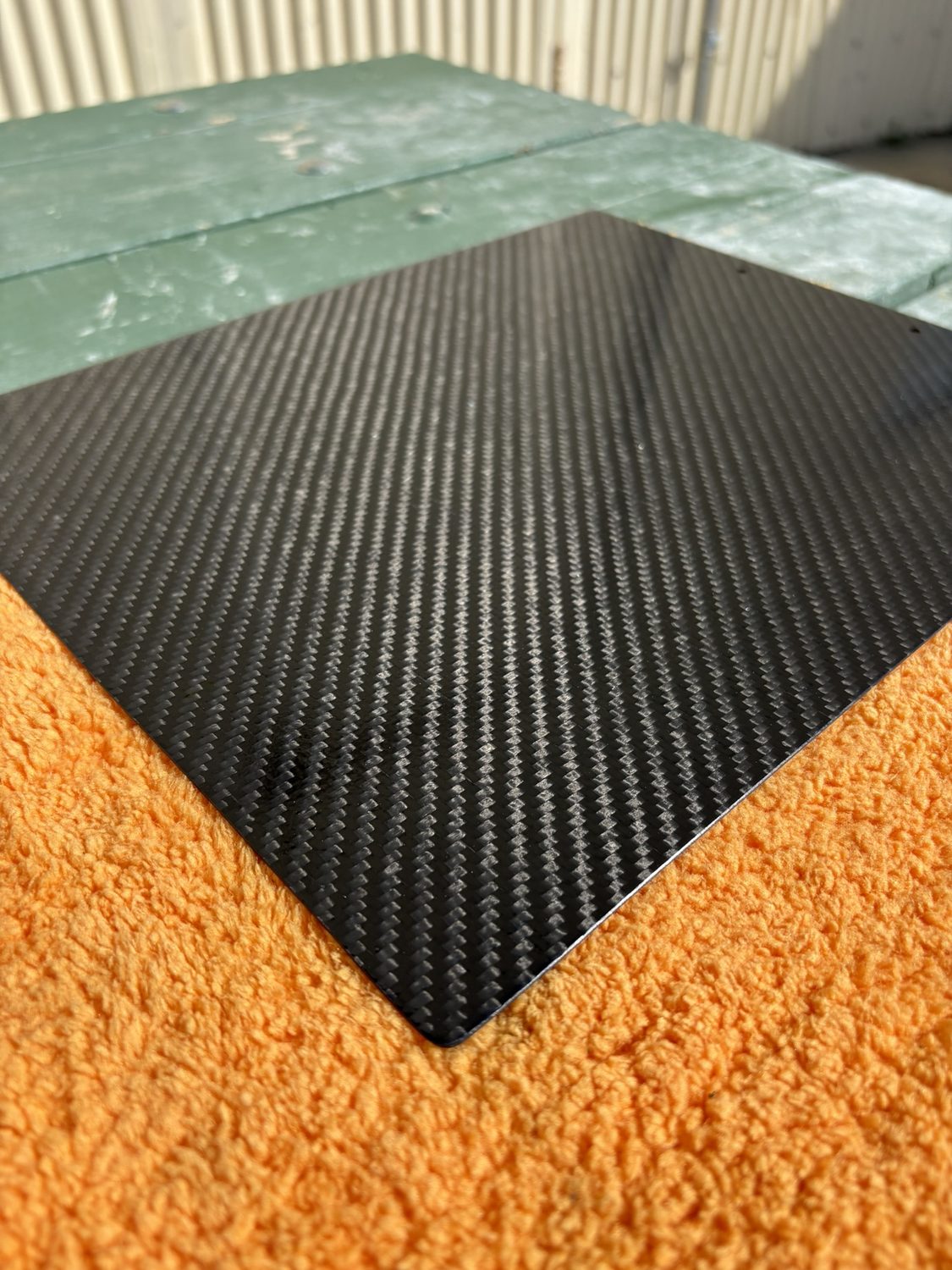

Clipboard (ME161)
Clipboard (ME161)

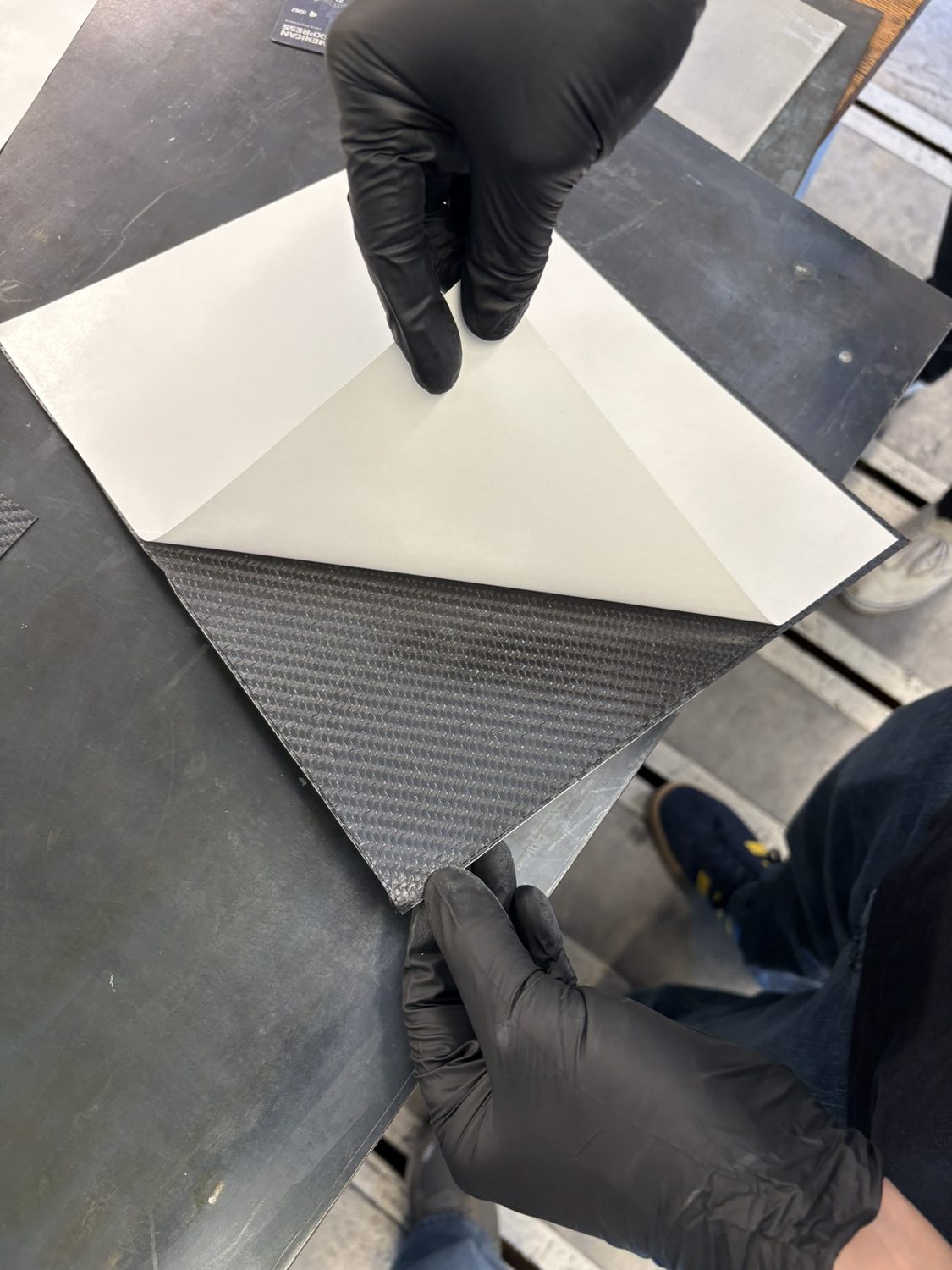

Layup plies
Layup plies

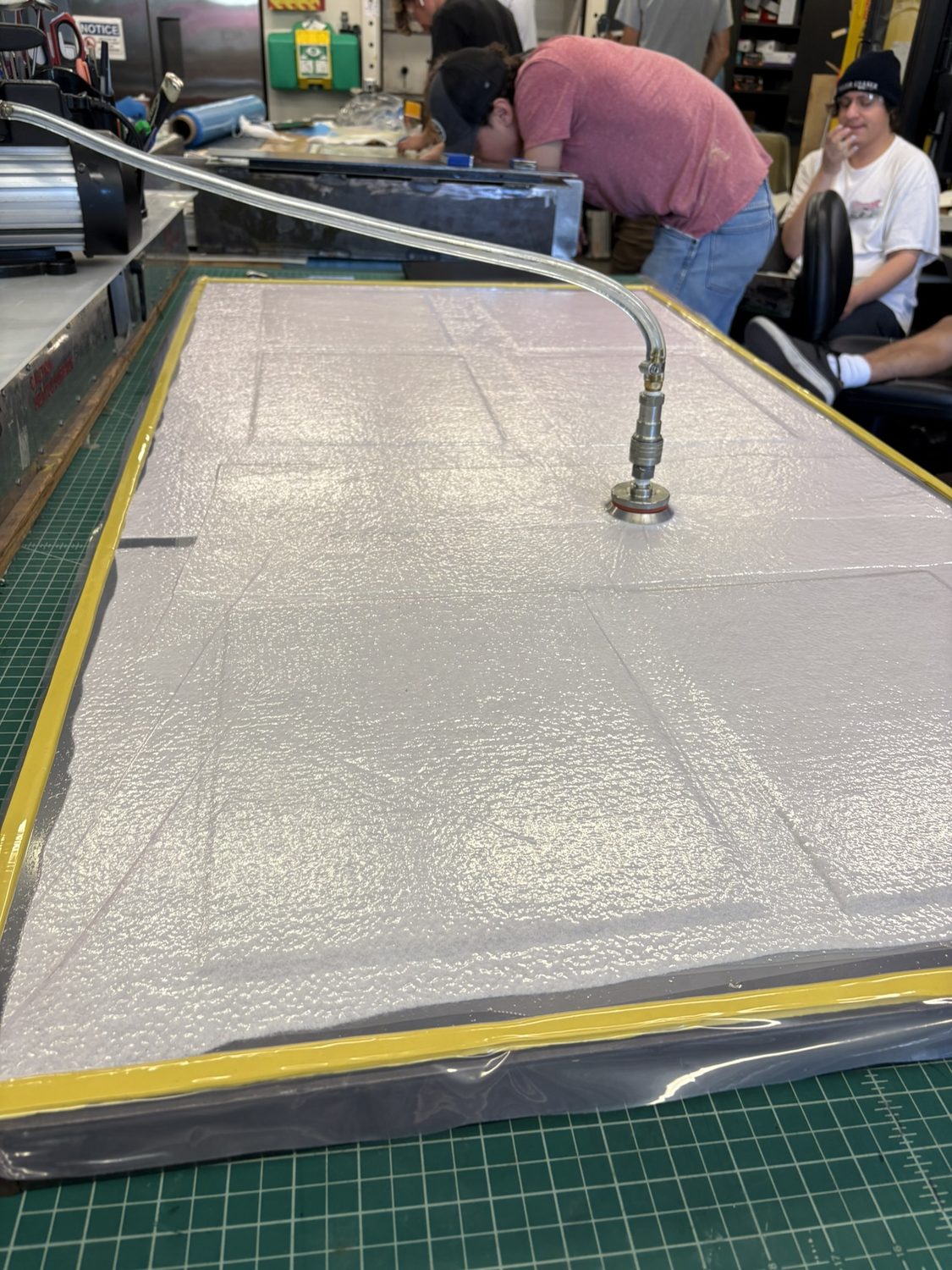

Under vacuum
Under vacuum
